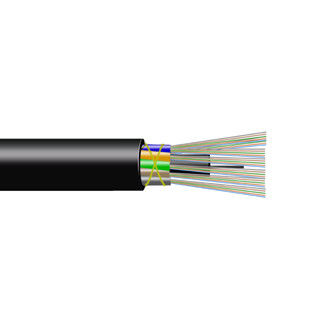

Black Lightweight Universal Fiber Optic Cable , Air Blown Fiber Optic Cable Low Friction

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 300-2000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : Universal Fiber Optic Cable

Filler Rod : If Necessary

Water Blocking System : Water Blocking Yarn/tape

Strentherning Member : FRP

Sheath Material : Black PE

Highlight : Air Assisted Fiber Optic Cable, Low Friction Fiber Optic Cable, Fast Fiber Optic Cable

Contact Now

Air Assisted Blown Fiber Optic Cable For Fast Low-Friction Fiber Deployment In Ducts And Microducts


Air-Blown Fiber Optic Cable

Black Lightweight Universal Fiber Optic Cable , Air Blown Fiber Optic Cable Low Friction

Description

OM1,OM2,OM3,OM4 multimode or OS1/OS2 (ITU-T G.652D) singlemode 250um fibers are positioned in a PBT loose tube. Tubes & Fillers (If necessary) are standed around a FRP central strength member into a compact and circular cable core. The cable is completed with Polyethylene (PE) jacket.


Features

  • Small diameter and light weight
  • Semi-dry core design,easy for splicing
  • Suitable for long distance air blowing installation

Specification

PARAMETER UNIT VALUE
Central strength member
FRP
Filler rod
If necessary
Water resistance
Water-blocking yarn/tape
Sheath material
Black PE



PARAMETER UNIT VALUE
Temperature ℃ -40 to 70
Crush N/100mm 450
Maximum tensileload N 1000
Minimun bend radius mm Installed 20D
Minimun bend radius mm Loaded 10D
Fiber ount n 2-6 48-72 96 144
Nominal weight kg/km 16 26 29 48
Nominal outer diameter mm 4.3 5.4 6 7.6
