GJFDKBV Indoor Ribbon Optical Cable , FTTH Armored Fiber Optic Patch Cable

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Model Number : GJFDKBV

Type : Fiber Optic Cable

Cable Diameter (mm) : 3.5*2.5 (4F) ~ 5.0*2.5 (12F)

Core : 4, 6, 8, 12 fibers (customizable)

Name : Ribbon Optical Cable

Contact Now

Product Description

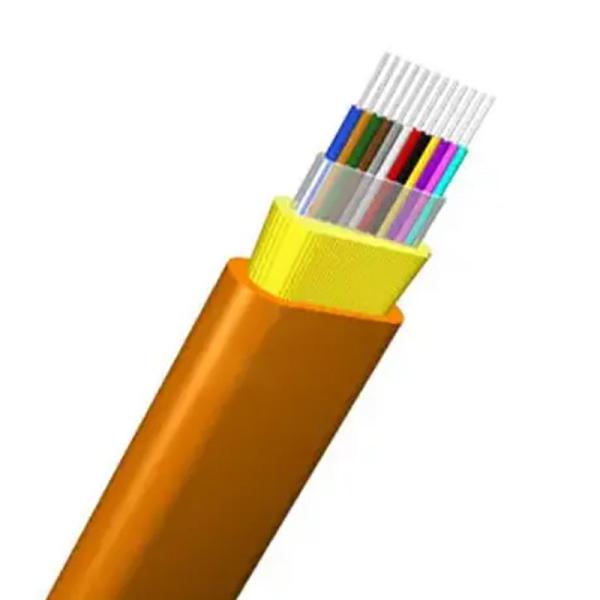

GJFDKBV Indoor Ribbon Fiber Optic Cable
The GJFDKBV Indoor Ribbon Fiber Optic Cable is designed for high-density fiber optic networks, offering compact structure, high flexibility, and superior mechanical performance. It features ribbon fiber arrays for efficient mass fusion splicing, reducing installation time and costs. The cable is reinforced with aramid yarn (Kevlar) for excellent tensile strength and is available with PVC or LSZH (Low Smoke Zero Halogen) sheathing for flame resistance and environmental safety.
Characteristics:
1.High Fiber Count: Supports 4, 6, 8, or 12 fibers in a flat ribbon structure, ideal for space-saving installations
2.Aramid Reinforcement: Provides 80N (long-term) / 200N (short-term) tensile resistance, ensuring durability in indoor environments
3.Flame Retardant: Available in PVC or LSZH sheathing, meeting YD/T 1258.4-2005, IEC 60794-2-30/31 standards
4.Low Attenuation: Ensures stable signal transmission with <0.4 dB/km @1310/1550nm for single-mode fibers
5. Compact & Lightweight: Flat design (3.5×2.5mm to 5.0×2.5mm) for easy routing in tight spaces
6. Wide Temperature Range: Operates in -20°C to +60°C, suitable for various indoor applications
Product Parameters
Single-mode
Multimode
Core Diameter
8–10 µm
50 µm / 62.5 µm
Cladding Diameter
125 µm
125 µm
Operating Wavelength
1310 nm / 1550 nm
850 nm / 1300 nm
Attenuation
0.2–0.4 dB/km @1550 nm
1–3.5 dB/km @850 nm
Bandwidth
>100 THz·km
150–4700 MHz·km
Numerical Apertures(NA)
0.12–0.14
0.20–0.29
Connector Types
LC, SC, FC (high precision)
LC, SC, MPO (high-density multi-fiber)
Light Source
Laser diode (narrow spectrum)
LED/VCSEL (broader spectrum)
Typical Applications
Long-haul networks, submarine cables, 5G core
Data centers, LANs, CCTV systems
Cost
Higher (laser sources, precision optics)
Lower (LEDs, relaxed tolerances)
Standards
ITU-T G.652/G.657
ISO/IEC 11801 (OM1–OM5)
Product Details

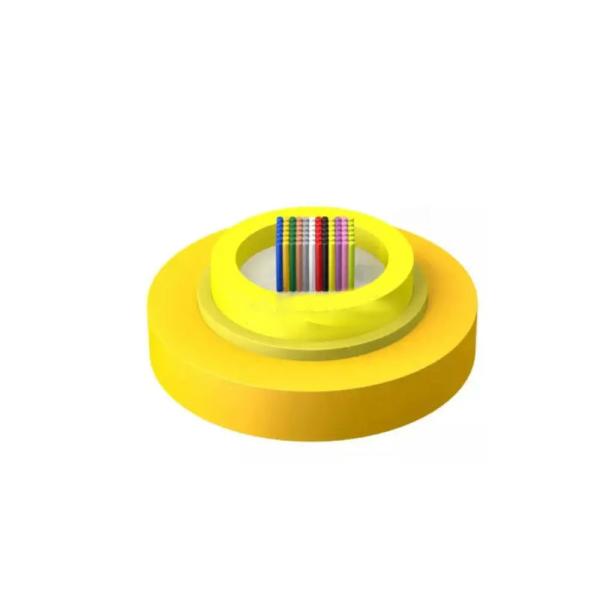

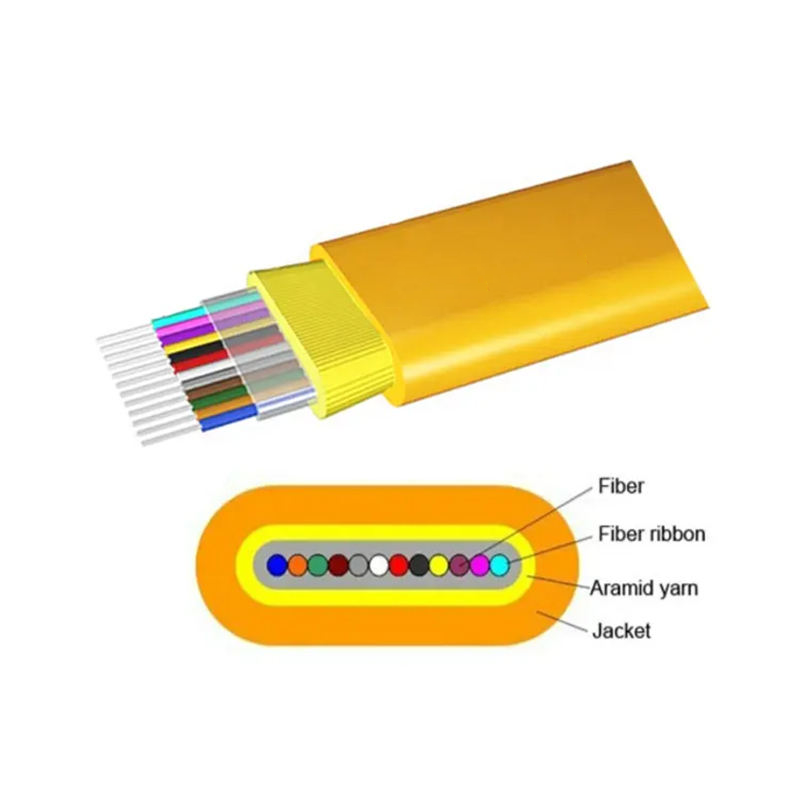

GJFDKBV Indoor Ribbon Optical Cable , FTTH Armored Fiber Optic Patch CableGJFDKBV Indoor Ribbon Optical Cable , FTTH Armored Fiber Optic Patch CableGJFDKBV Indoor Ribbon Optical Cable , FTTH Armored Fiber Optic Patch CableGJFDKBV Indoor Ribbon Optical Cable , FTTH Armored Fiber Optic Patch Cable

Application
1.Telecommunications & Internet : FTTH, global submarine cables, 5G infrastructure
2.Media & Broadcasting : HD/4K streaming, live event broadcasting, cable TV
3.Healthcare : Endoscopy, surgical tools, laser diagnostics
4.Industrial & Energy : Smart grids, pipeline monitoring, factory automation
5.Data Centers & Enterprise : Cloud computing, server interconnects, campus networks
6.Security & Surveillance : Tamper-proof alarms, long-distance CCTV
