All Dielectric Self Supporting Cable ADSS Aerial Fiber Optic Cable Lightweight

Name: All Dielectric Self Supporting Cable ADSS Aerial Fiber Optic Cable Lightweight
Brand: MingTong
Price: 500 USD

Cheap All Dielectric Self Supporting Cable ADSS Aerial Fiber Optic Cable Lightweight wholesale

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : All Dielectric Self Supporting Cable

Model No : ADSS

Loose Tube Material& Filling Material : PBT&Jerry

Color Of Loose Tube : Blue, Orange,Green , Brown,Red Etc

Central Strength Member : Non-Metallic

Strength Material : High Flexible Amaid Yarn

Core Moisture Protection Methodology : Water Blocking Tape Or Filling Compound

Maximum Span : 1500m

Installation Style : Self-Support Aerial

Highlight : adss cable, dielectric fiber optic cable

Contact Now

All Dielectric Self-Supporting ADSS Cable

Optical Fiber Cable ADSS

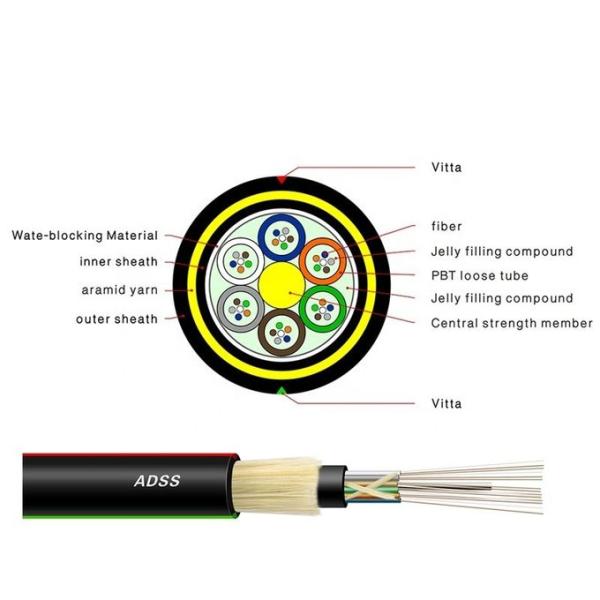

Structure characters
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period

Properties
1. Up to 288 optic fibers.
2. Lightweight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

Applicable Fields
1. Long distance telecom, LAN in high voltage area or access to telecom network.
2. For power transmission system, much thunder areas and high electro-magnetic inerference.

Technical Date

for 24 core fiber, 800m span

Fiber Optic Range	Span(M)	Out-diameter(MM)	Module(N/)	Linear Expanding Coefficient(1/K)	Weight(KG/KM)	Safely running strain(N)
Weather condistion:wind speed: 35m/s and 0mm ice thickness.
24	800	15.5	2.86X10	0.02X10	200	29680
Weather condistion:wind speed: 10m/s and 5mm ice thickness.
24	800	14.5	2.33X10	0.11X10	185	19600
