Communication Network GYXY Outdoor Fiber Optic Cable

Name: Communication Network GYXY Outdoor Fiber Optic Cable
Brand: MingTong
Price: 500 USD

Cheap Communication Network GYXY Outdoor Fiber Optic Cable wholesale

Brand Name : MingTong

Model Number : GYXY

Certification : ISO

Place of Origin : Dong Guan China

Price : 500-3000RNB/KM

Payment Terms : L/C,T/T

Supply Ability : 200km/Day

Delivery Time : It depends on the actual situation.

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Product Name : Outdoor Optical Fiber Cable

Fiber Type : G652D Single Mode

Fiber Count : 2-24 Cores

Structure : Unitube

Sheath Material : HDPE/MDPE

Highlight : GYXY Outdoor Fiber Optic Cable, Communication Outdoor Fiber Optic Cable, GYXY armored fiber optic cable

Name : Outdoor Optical Cable

Contact Now

roduct Description

2-24 Core Outdoor Aerial Fiber Optic Cable Communication Network Optical Fiber Cable GYXY

Description:

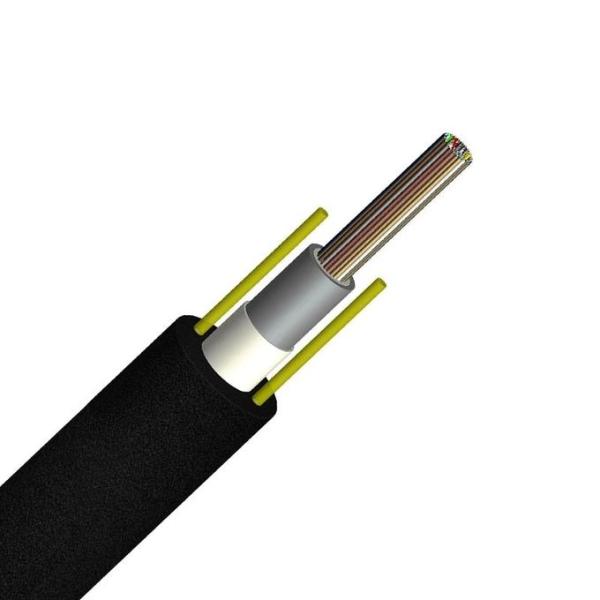

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and coverwith a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.

Features:

--- Max attenuation : 0.35dB @ 1310nm and 0.21dB/Km @1550nm
--- Fiber : G652D
--- Installation : Suitable for aerial or duct
--- Application : Apply to Long distance communication system, Local area network system and Subscriber
network system
--- Lifetime : above 30 years
--- Operating temperature : -40℃~+70℃
--- Permisson bent radius
Static : 10 times O.D. Dynamic : 20 times O.D.

Communication Network GYXY Outdoor Fiber Optic Cable

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people

for more detailed information.
