GYTS53 Direct Buried Fiber Optic Cable Outdoor Stranded Loose Tube Double Steel Armored Cable

Name: GYTS53 Direct Buried Fiber Optic Cable Outdoor Stranded Loose Tube Double Steel Armored Cable
Brand: MingTong
Price: 500 USD

Cheap GYTS53 Direct Buried Fiber Optic Cable Outdoor Stranded Loose Tube Double Steel Armored Cable wholesale

Brand Name : MingTong

Model Number : GYTS53

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-3000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : Direct Buried Fiber Optic Cable

Application : Telecommunication, Aerial, Duct, Telecom, Network

Fiber Type : G652D, G657A1, G657A2

Highlight : GYTS53 Outdoor Optical Fiber Cable, GYTS53 Armored Optical Fiber Cable, GYTS53 loose tube fiber optic cable

Outer Jacket : Black UV-and Moisture-resistant Polyethylene(PE)

Fiber Count : 2-288 Fibers

Central Strength Member : Steel Wire

Armor : Corrugated Steel Tape

Contact Now

Product Description

Direct Buried Stranded Loose Tube Armored Cable, GYTS53 Outdoor Fiber Optic Cable

Description

The GYTS53 outdoor fiber optic cable has single-mode/multimode fibers in loose tubes filled with water blocking compound, which are then stranded around a strength member to form a circular cable core. A Plastic Steel Plastic (PSP) layer is applied over the core for protection, and the cable is completed with a thin inner PE sheath and an outer PE sheath.

Features

To ensure water blocking, the cable uses a single steel wire for strength, special water-blocking compound in the loose tube, and 100% APL and PSP moisture barrier.

Application

Fiber optic cables can be aerial, duct, or outdoor.

Specifications

Cable Type	GYTS53
Fiber Type	SM
Application	Long-distance communication, LAN
Recommended installation methods	Direct buried
Environment	Outdoor
Temperature Range	-40℃ to 70℃

Fiber Count	Nominal Diameter	Nominal Weight	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
	(mm)	(kg/km)			Short Term	Long Term	Short Term	Long Term
4	9.5	80	4	1	3000	1000	3000	1000
12	9.5	80	6	2	3000	1000	3000	1000
24	9.5	80	6	4	3000	1000	3000	1000
96	14.6	220	12	8	3000	1000	3000	1000
288	21.6	310	12	24	3000	1000	3000	1000

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

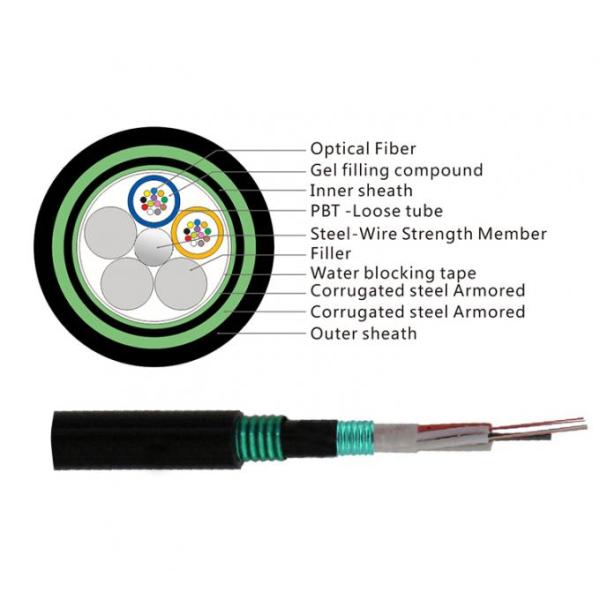

Structure and Product Pictures

GYTS53 Direct Buried Fiber Optic Cable Outdoor Stranded Loose Tube Double Steel Armored Cable

Packing & Shipping

Cables are supplied in specified lengths and shipped on separate iron-wooden drums, with minimum barrel diameter not less than 30 times the cable diameter. Cable ends are sealed with plastic caps for water protection and easy accessibility for testing. The drum contains a final inspection report with attenuation data for each fiber.
